Super MB Pro M6+ Full Version DoIP Benz Diagnostic Scanner With Software SSD for Cars and Trucks

Based on M6, Super MB PRO M6+ has greatly improved product functions and compatibility, and is 100% compatible with the original Mercedes-Benz software.

Highlights

• Super MB Pro M6+ Full Version DoIP Benz Diagnostic Scanner With Software SSD for Cars and Trucks. (For detailed software version, please contact Whatsapp +86 13995696053)
• M6+ supports BMW E-SYS, Aicoder, BMW APP software
• Comes with latest software SSD that runs fast
• Supports Vediamo and DTS Monaco
• Supports older vehicles as well as new 12V cars, 24V diesel trucks & buses, MPVs, etc.
• Xentry W204, DAS W211, HTTWIN, W140 tested OK.

Product Features

1. 100% compatible with the original Mercedes-Benz software.
2. The front label of the M6+ uses a design protected by trademark and art copyrights to improve product recognition.
3. The communication interface between the M6+ and the computer is a USB 3.0 interface, which improves compatibility with both old and new computers and tablets (no need for devices with dedicated network ports).
4. M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Simply connect the M6+ to a local computer with internet access, and we can remotely provide paid vehicle diagnosis and detection services. Customers can also set up local remote diagnostics within their LAN, greatly enhancing product flexibility.
5. M6+ supports BMW E-SYS, Aicoder, wired and wireless programming and coding for F and G series, and enables BMW modifications and hidden function activation.
6. M6+ supports BMW APP software, including mobile phone English versions of Bimmercode (for hidden function activation), Bimmerlink (for diagnostics and code clearing), and other apps such as MHD, Bimmergeeks, XHP Flashtool, ODIS-e, XDelete, THOR-the M Flasher, PRO-Tool, and more.
7. M6+ supports vehicles using the DOIP communication protocol, such as newer Volkswagen, Audi, Skoda, Bentley, Lamborghini, etc., and includes a dedicated transition button.

Product Functions: M6 vs. M6+ Comparison

M6+ Connection Instructions

1. Connection Between Mercedes-Benz Diagnostic Software and Hardware

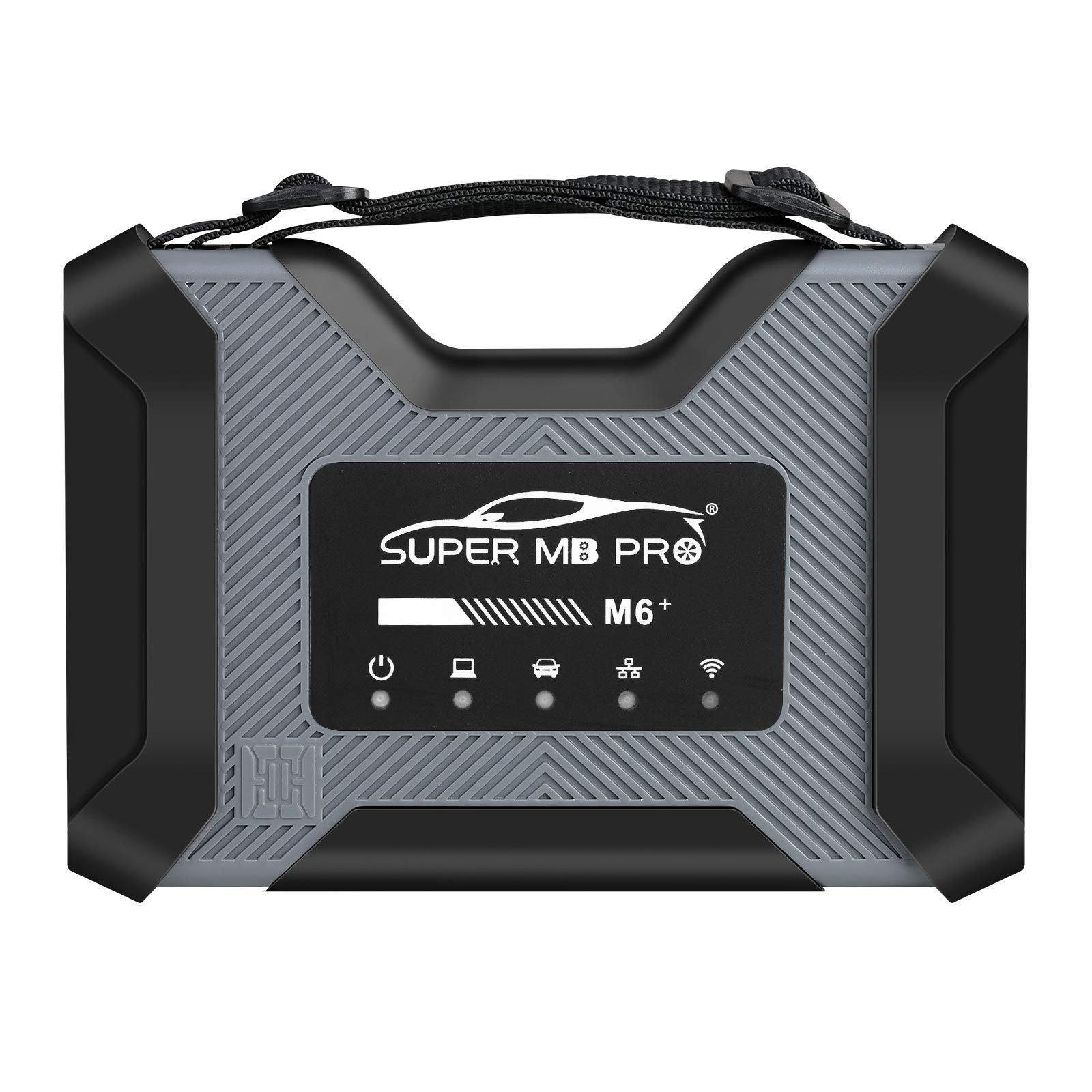

1. Connect the M6+ hardware box to the vehicle’s diagnostic interface using the test cable. The red indicator light ① on the host remains on, and the system indicator ② flashes during startup. After startup, ② stays on and beeps once, indicating successful boot-up.
2. Wired connection: Connect the USB port ⑦ of the M6+ to the computer or tablet via USB cable. A new network connection appears in the network settings (driver-free on Windows 10). Set the IP address to 169.254.255.*, subnet mask: 255.255.0.0, preferred DNS: 169.254.255.255. Under “Advanced,” add an additional IP address: 172.29.127.* with subnet mask 255.255.0.0. Once connected, indicator light ④ turns on.

3. Wireless connection: The wireless network will not appear while the USB cable is plugged in. Unplug the USB cable from the M6+; then locate and connect to the “M6+ DOIP-****” network on your device. The green wireless indicator ⑤ remains on, the wired light turns off, and no configuration is needed. Password: 123456789.
4. After activating the BEN software lock on the computer, the original diagnostic software operates normally.
5. For remote C-end operation, please consult us.

2. Connection Between BMW Software and Hardware

1. Connect the M6+ hardware box to the vehicle’s diagnostic interface using the test cable. The red indicator light ① remains on, and system indicator ② flashes during startup. After startup, it stays on and beeps once, confirming completion.
2. Wired connection: Connect the M6+ USB port to the computer/tablet via USB cable. A new network connection appears (Windows 10 driver-free). Set the IP address to 172.29.127.* with subnet mask 255.255.255.0. Under “Advanced,” add another IP: 169.254.0.* with subnet mask 255.255.255.0. Once connected, indicator ④ stays on. Press and hold side switch ⑥ for 3 seconds, then release. Indicator ④ turns solid green then flashes—indicating readiness for testing. Unit reverts to initial state after power cycle.
3. Wireless connection: The wireless network is unavailable while USB is connected. Unplug the USB cable to reveal the “M6+ DOIP-****” network. Connect directly—no setup required; password: 123456789. Wireless indicator ⑤ stays green; wired indicator ④ turns off. Press and hold switch ⑥ for 3 seconds, then release. Indicator ⑤ remains on then begins flashing—test mode active. Returns to default after reboot.
4. BMW software on computer uses wired or wireless connection; BMW mobile apps use wireless only.
5. For remote C-end operation, please consult us.

3. DOIP Function and Hardware Connection for Other Diagnostic Software

Refer to the BMW software and hardware connection method above.

Notice

Do not close or uninstall the built-in Huorong anti-virus software, otherwise the Mercedes-Benz software will be damaged. Do not install other anti-virus software.

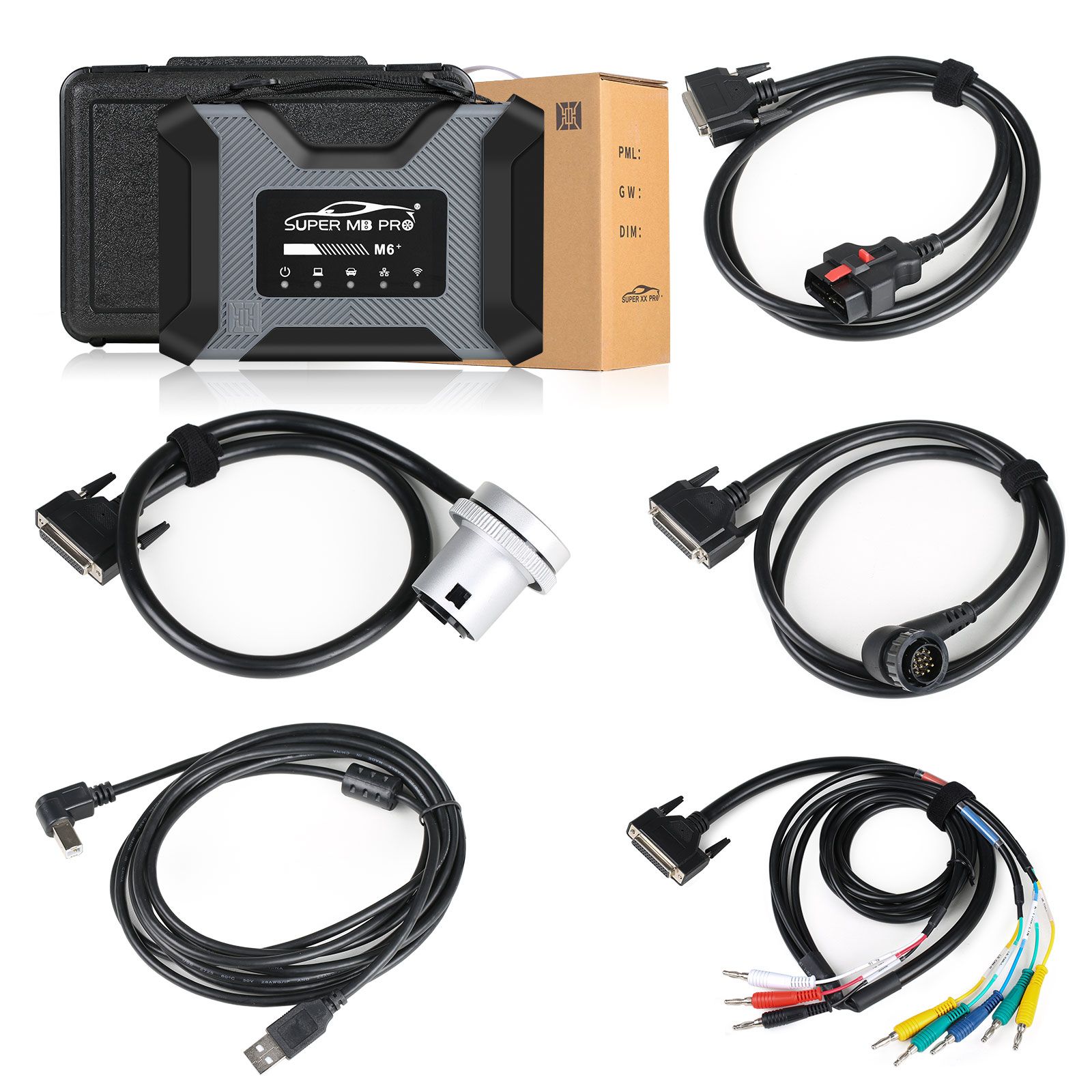

Package Includes

• 1 pc × SUPER MB PRO M6+ Host
• 1 pc × OBD2 16-pin Cable
• 1 pc × USB Cable
• 1 pc × 38-pin Cable
• 1 pc × 14-pin Cable
• 1 pc × 4-pin Cable
• 1 pc × SSD
