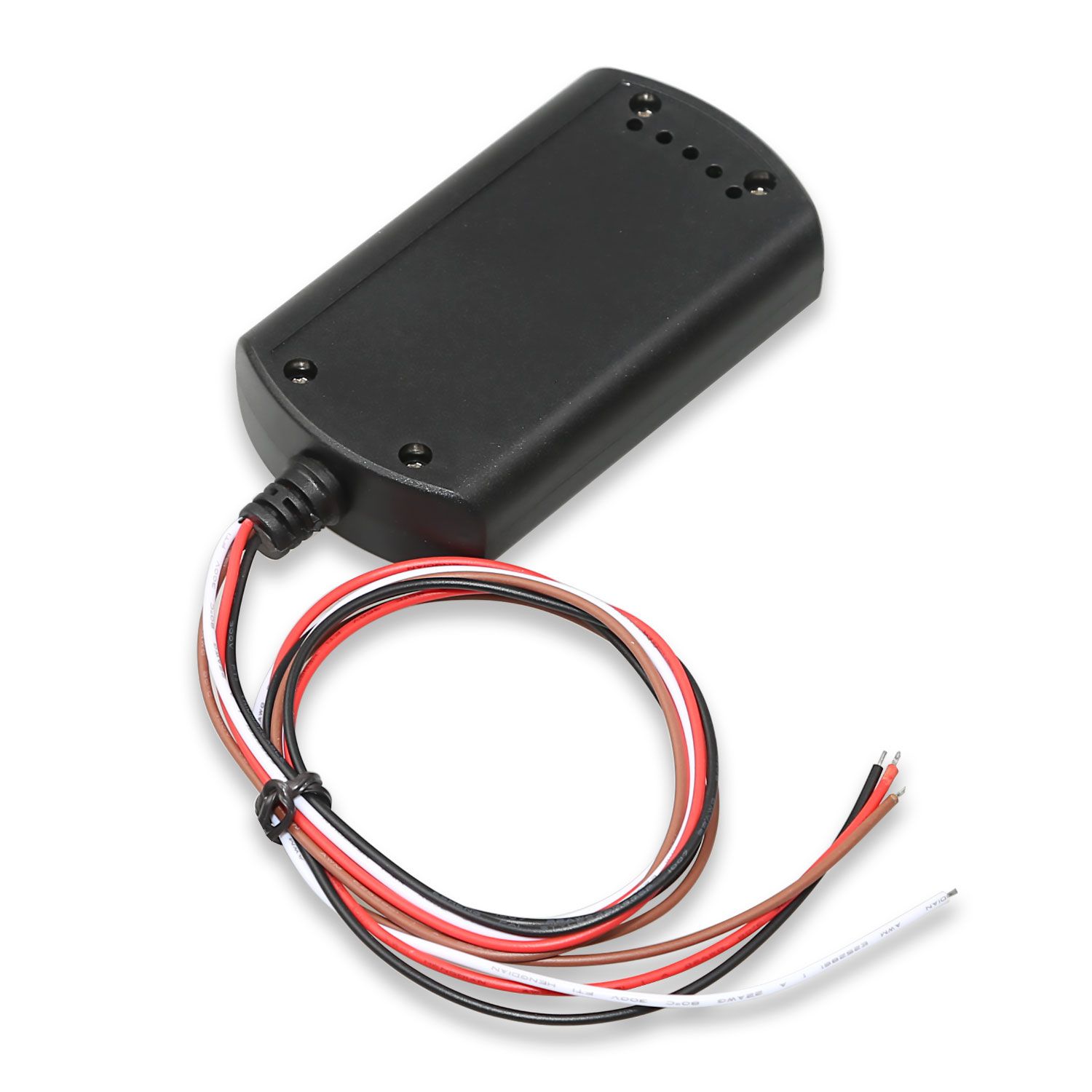

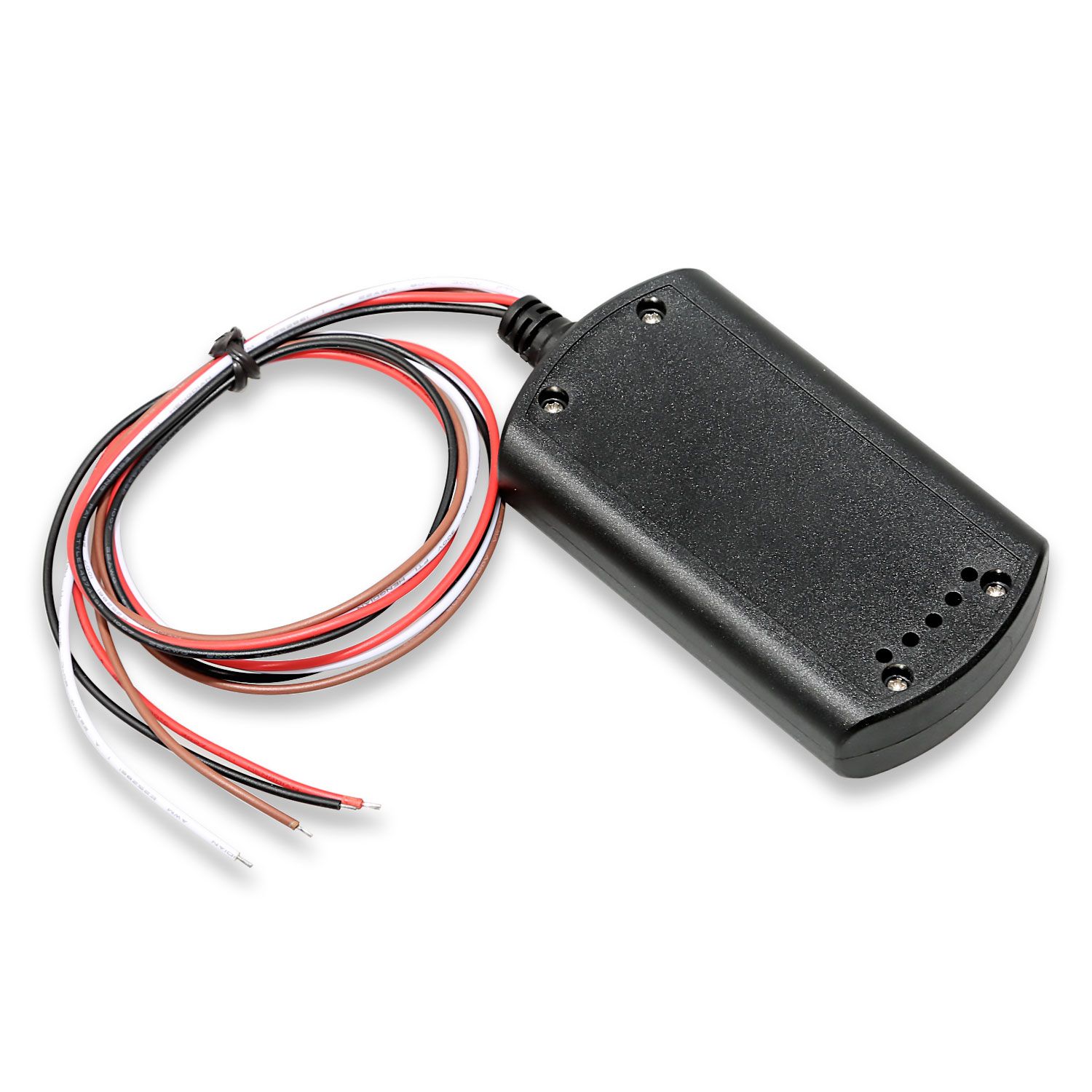

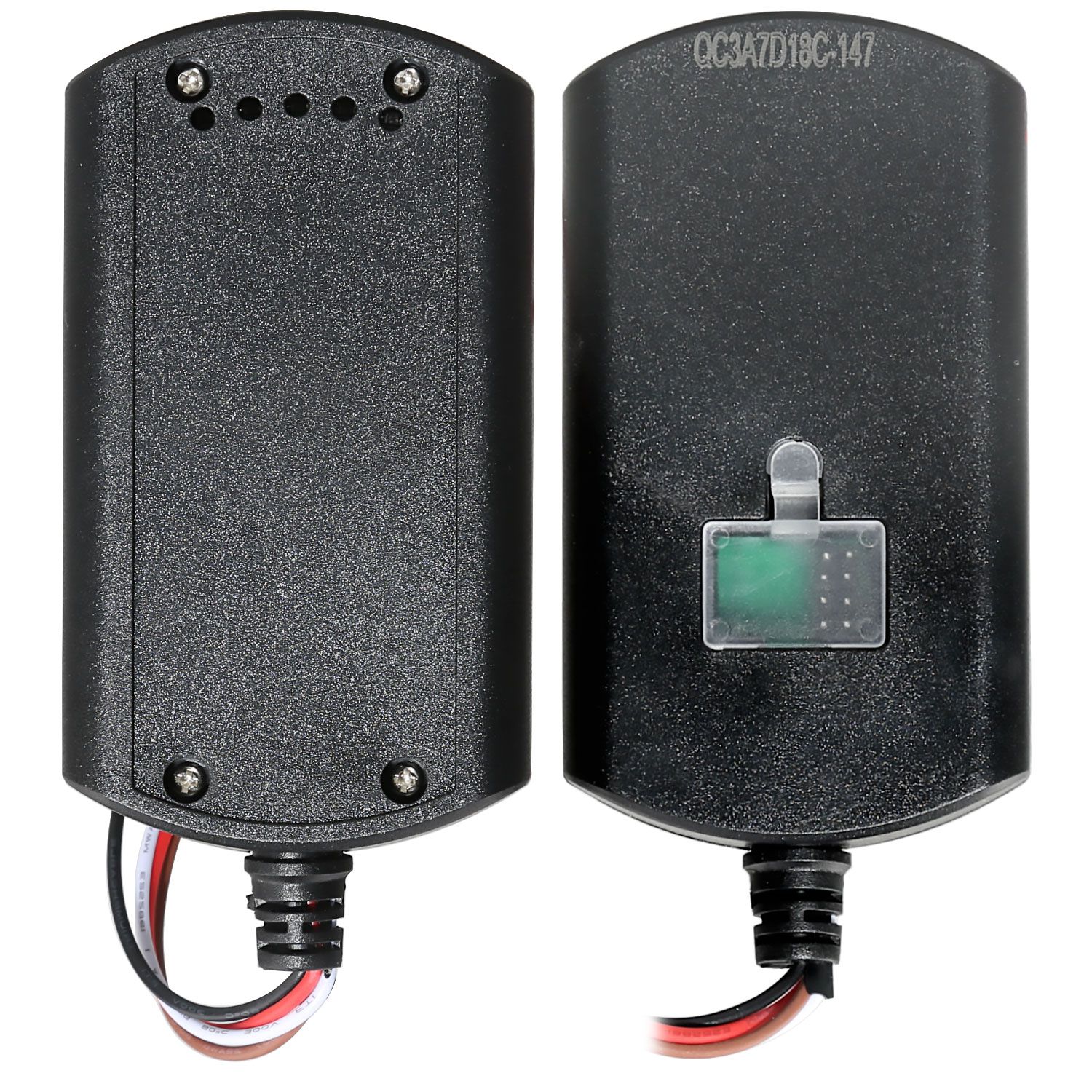

Adblueobd2 Scania Euro6 Truck Emulator

Scania Euro6 Adblue Emulator

Scania Euro 6 Adblue Emulator does not need to be leaming
You have to mount emulator in the plug of the EEC(AdBlue)ECU(in the pink one),Yon can find EEC ecu at the center of the vehicle frame. Two big plugs(one is pink)

in this manual you will find pin number of the EEC plug, also colors cables of EEC and Emulator.

Connect wires of the emulator with this cable as reference:
Red(Vcc)-PIN 12 (green) Cut the cable after connect emulator to truck side
Black (GND)-PIN 4 (fat black)
Yellow (CAN H）-PIN 22 (orange)
Green (CAN l)-PIN 19 (fat black)




Package List:

1pc x Scania euro6 adblue emulator
